A variety of scale products and accessories are available for different applications and to make life easier
Browse the weighing scale products available below or go directly to the product category page
*Product availability varies on supply






Balances











***More options are available, contact us with your requirements. Availability depends on supply – some items may be on back order.***

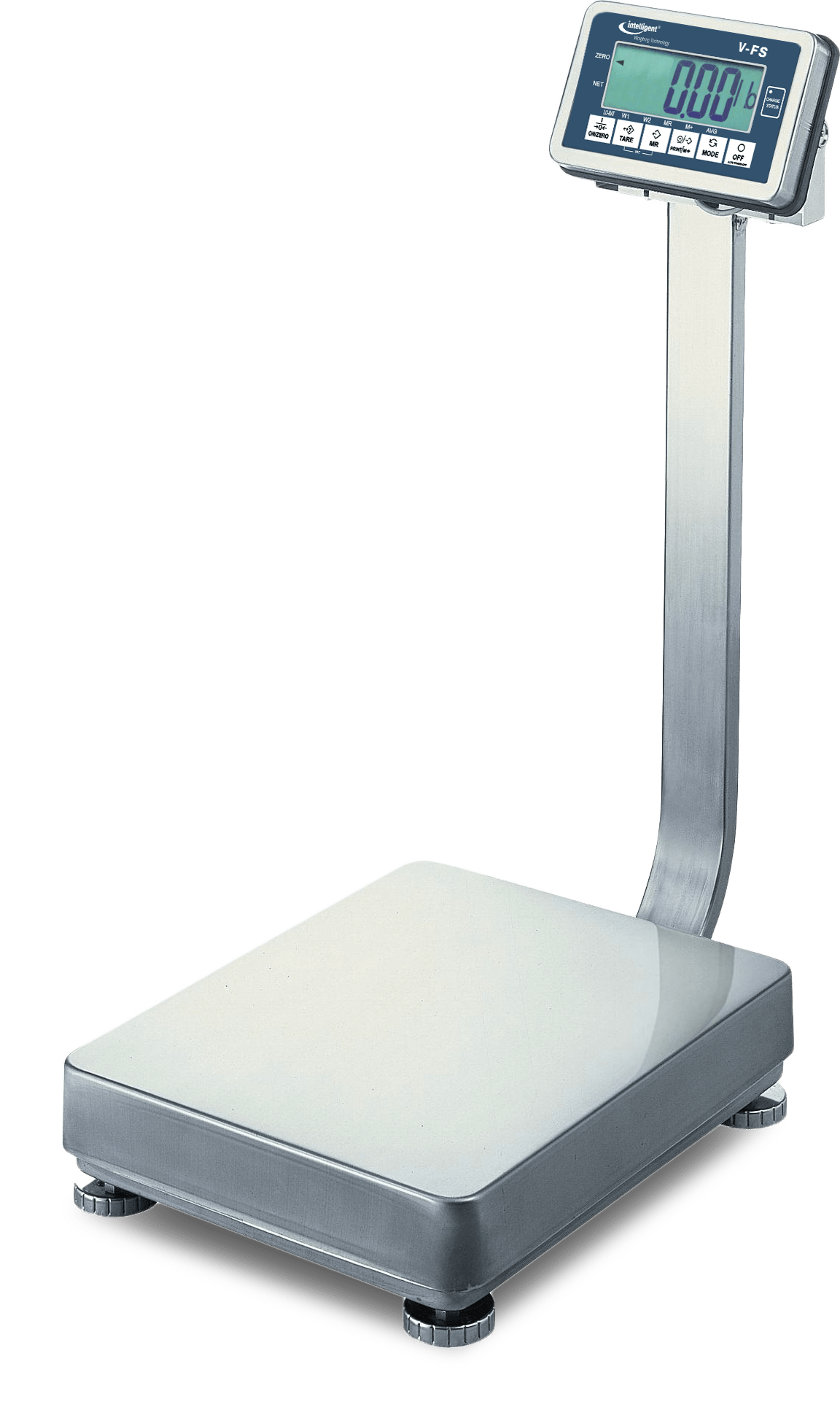

Bench Scales

300 lb/150 kg × 0.1 lb/0.05 kg) Configurable 1/3,000**, 1/6,000, 1/7,500
**Legal for Trade setting



Floor Scales


Part Number | Rated Capacities | Load Cell Capacities | Size (LxWxH) in Inches | Weight |
FSP3x3 | 500kg/1t/2.5t/1Klb/2Klb/5Klb | 563YH-300kg/500kg/1t/500lb/1Klb/2.5Klb | 36″ X 36″ X 4″ | 72kg / 159lb |
FSP4x4 | 500kg/1t/2.5t/5t/1Klb/2Klb/5Klb/10Klb | 563YH-300kg/500kg/1t/2t/500lb/1Klb/2.5Klb/SE5Klb | 48″ X 48″ X 4″ | 120kg / 265lb |
FSP5x5 | 2.5t/5t/5Klb/10Klb | 563YH-1t/2t/2.5Klb/SE5Klb | 59″ X 59″ X 4″ | 200kg / 441lb |
FSP5x5-LE | 10Klb | 563YH-5Klb | 59″ X 59″ X 5″ | 210kg / 463lb |
*FSP4x6 | 2.5t/5t/5Klb/10Klb | 563YH-1t/2t/2.5Klb/SE5Klb | 48″ X 72″ X 4″ | — |
*FSP5x7 | 2.5t/5t/5Klb/10Klb | 563YH-1t/2t/2.5Klb/SE5Klb | 59″ X 84″ X 4″ | — |
These floor scales can be built along with existing parts or you can get a whole new floor scale with alloy steel load cells, mild steel feet for each corner, two eye bolts and an aluminum junction box to wire it all together.
FSP can be Legal For Trade certified and is certified by Measurement Canada and NTEP.
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA, CE, RoHS and ExNepsi certified load cells
- NTEP certified floor scales: 3’x3′ to 5’x5′-1Klb to 10Klb Class III
- Measurement Canada certified floor scales: 3×3-5Klb, 4×4-5Klb, 5×5-5Klb


- Complete floor scale with 380 Indicator (can come with 480/480 Plus, 482/482 Plus, or 680 Plus Indicator)
- RoughDeck HP 4 ft x 4 ft x 3.5
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box
Floor scale accessories like bumpers and ramps can be added to any floor scale to protect the scale and increase visibility for forklifts
Load Cells
Below are our most popular load cells for truck scales, silos, hoppers, floor and bench scales. There is wide range of load cell and load cell mount shapes, sizes and applications – including intrinsically safe options. If you are looking for something specific please contact us for more information.
Truck scale load cells


Features:
- Material: Alloy steel
- Rated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
- OIML MAA C4, Y=15 000 certified from 11t-55t
- CE, RoHS and Ex certified
- Lightning Protection Version (75Klb)
Compression Disk Load Cells

Compression load cells have a low profile making it a great option for applications where height is critical.
- Material: High-alloy steel, nickel plated
- Rated Capacities: 5Klbs & 10Klbs
- Full Scale Output: 4.0 mV/V
- Safe Overload: 150% full scale
- IP Rating: Environmentally sealed, IP67
- Approvals: cFMus
- Cable length: 50 ft.
Bench/ Floor Scale Load Cells

- Material: Stainless steel
- Rated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
- NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
- CE, RoHS and Ex certified
S-Type Load Cells

This load cell design has the ability to suit a wide range of applications, including tank, process weighing, hoppers, and many force measurement and tension weighing needs. Threaded mounting holes allow easy mounting to most fixtures.
- Material: Alloy steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
- NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS and Ex certified
Truck Scales
Remote Display
